Mobile Column Forktruck Service Lift Adapter
28,000 lb. Rated Capacity Material Handling Service Lift Get More Info28,000 LB. RATED CAPACITY MOBILE COLUMN MATERIAL HANDLING SERVICE LIFT
Turn any space into a productive workspace for your forktruck technician! The MP Series forktruck adapter has a 28,000lb capacity, when used with a pair of MP-Series mobile columns. The MP-Series comes in Wireless, DC-Wired, and AC configurations.
Features & Images

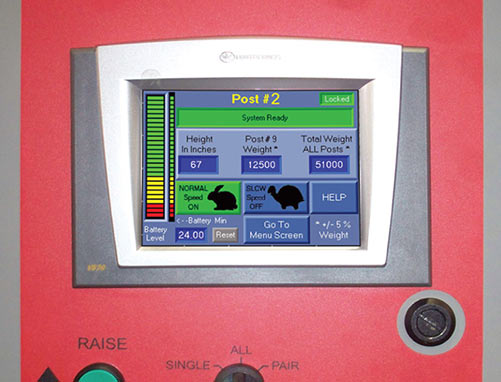

PLC computer controls for continuous synchronization of all columns. Touchscreen display shows operational status height, locks engaged (or not), inspection, cycles, each tech’s usage and many other features.
19 locking positions spaced every 3”, with ability to ‘park’ the load on the mechanical safety locks.

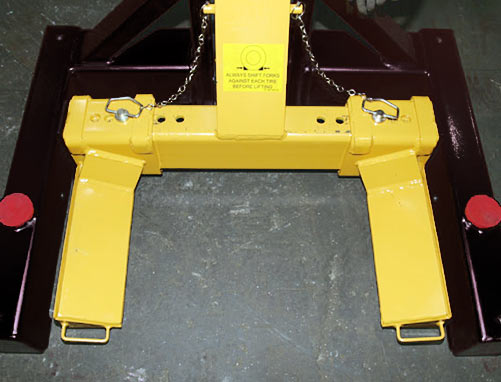

LiftPoint adjustable lifting forks are available in either 15” or 22” lengths for floatation tires or super-singles for safely lifting both rear tires. Forks adjust & lock for tire sizes from 48” down to 14” with wheels from 24” to 13” diameter.
19 locking positions spaced every 3”, with ability to ‘park’ the load on the mechanical safety locks.

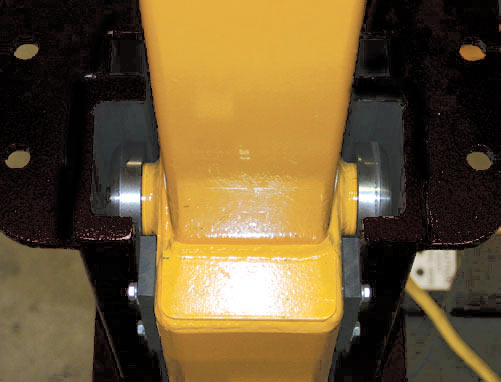

LiftPoint mobile columns are built from 5 3/4” fork lift mast sections, featuring double sealed, self lubricating cylindrical roller bearings for smooth, safe lifting and lowering.
LiftPoint-the easiest columns to move. No steel or plastic wheels. LiftPoint lifts easily roll on 6” rubber coated steel wheels (not plastic) which retract, to load the weight on the lift & shop floor (not the lifts wheels or axle).

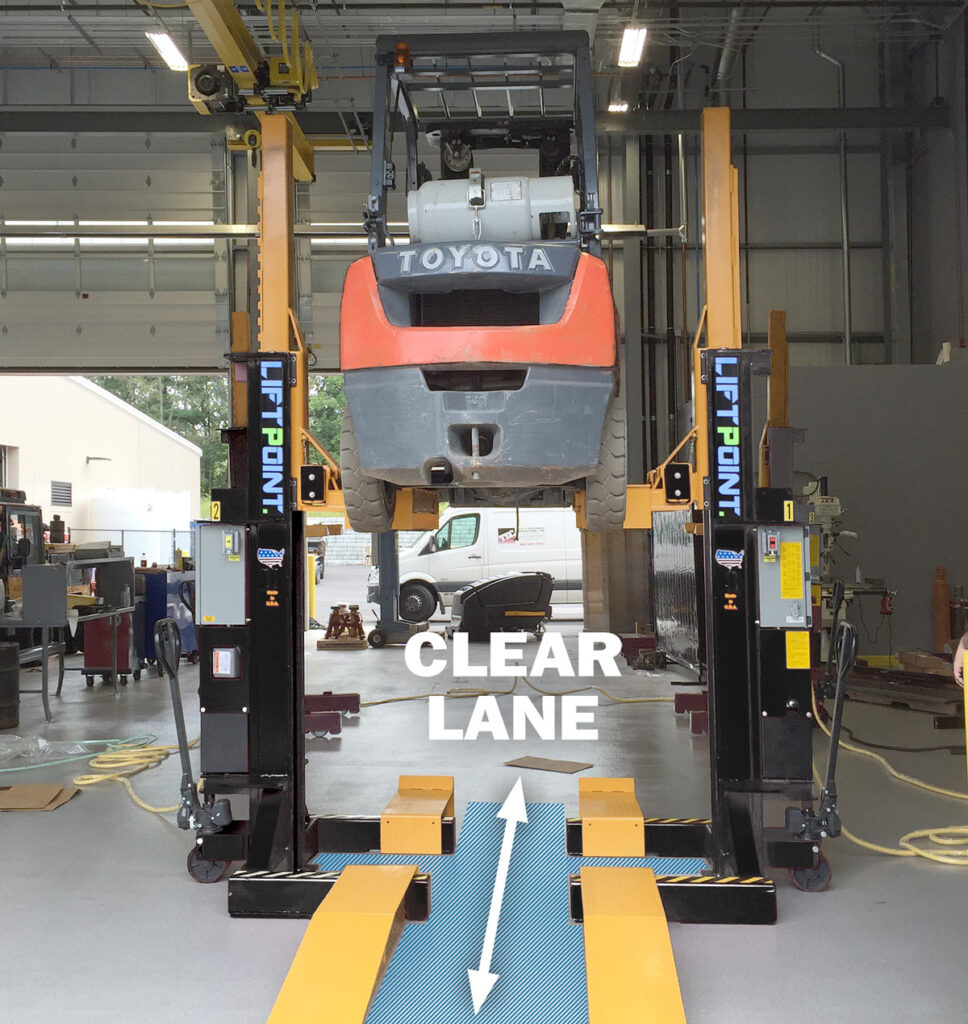

Clear, Unrestricted Working Space for unobstructed access for rolling equipment plus smaller footprint means more productive working space
Lift Design
- All columns act as control columns to raise or lower vehicles.
- 67” lifting stroke for tall mechanics.
- Sealed rollers on the wheels for easy movement of the columns.
- Hydraulic operation (no screw drives) for efficient, fast & easy lifting.
- Barrel type roller bearings on carriages for a lifetime of trouble free service (no plastic slide blocks or plastic rollers).
- Sealed roller bearings on carriages for a lifetime of trouble free service (no plastic slide blocks or plastic rollers).
- Manual safety over-ride permits columns to be lowered in a power outage without using hand cranks.
Safety Systems
- 19 safety lock positions spaced every 3” starting at 12”.
- Locking pins prevent movement of adjustable forks.

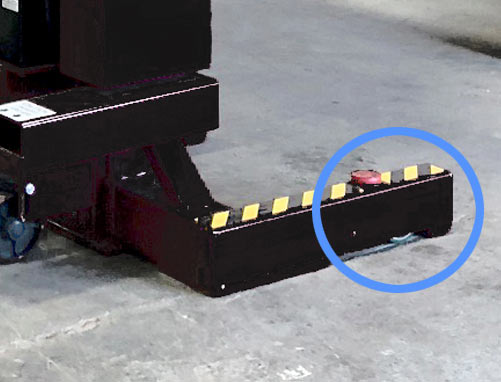

- Pallet jack style DUAL STEERING WHEELS lower when weight is applied (vs.spring loaded steering wheels which can cause columns to roll when not loaded.)
- Low mounting of power units means low center of gravity which makes moving the columns easier vs. topple prone “top heavy” columns.

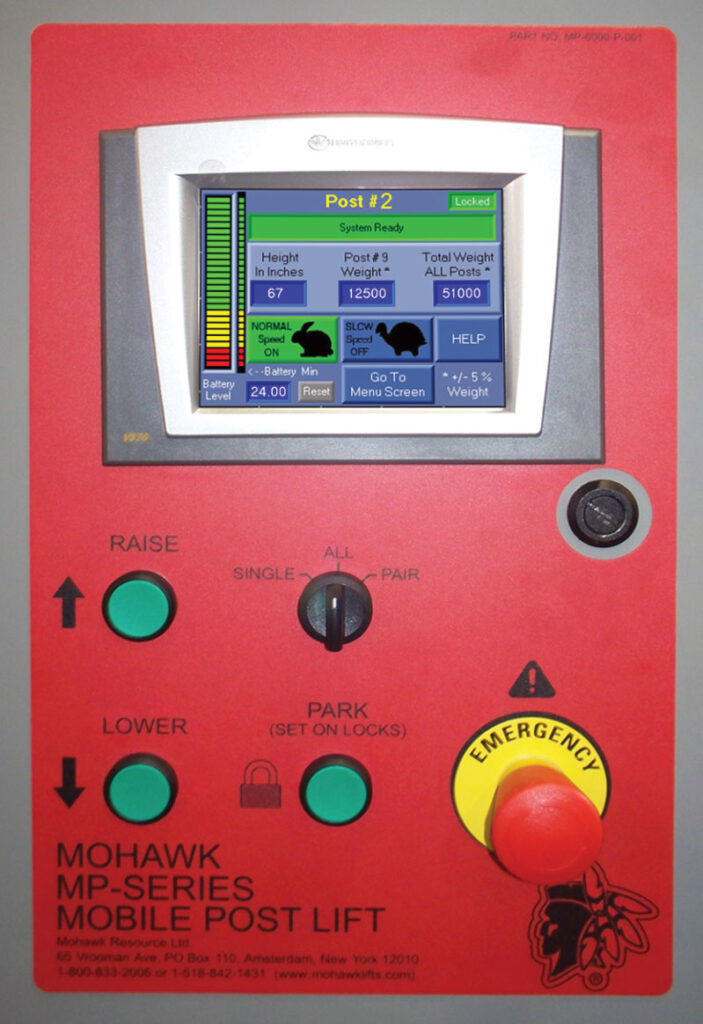

- PLC computer controls for continuous synchronization of all columns. Touchscreen display shows operational status height, locks engaged (or not), inspection, cycles, each tech’s usage and many other features.
Lift Operation
- 28,000 lb.capacity columns mean LiftPoint lifts material handling equipment other brands won’t.
- Column construction made of 5 3/4” or 7” USA made, [ shaped fork lift channel sections. LiftPoint does not use I-beam, H-beam, bent sheet metal or rectangular tubing for structural integrity.
- Carriages ride on roller bearings for smooth steady lifting. No plastic slide blocks or plastic rollers.

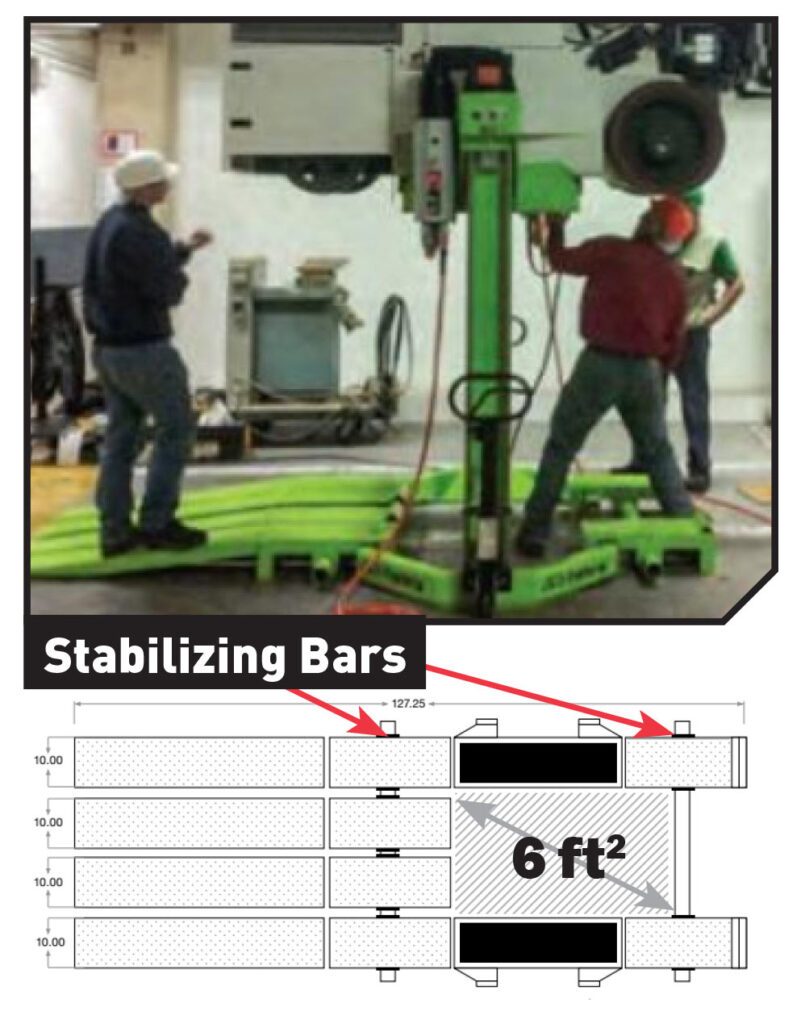

Competitor Lifts Tripping Hazzards (photo left)
Limited Space: stabilizing bars are a tripping hazard & prohibit access for dollies, jacks and tool boxes
Safety Means Stability
Lift Options
MP Wireless DC Lifts: Twin 12 volt, deep cycle, maintenance free US made batteries. Each column equipped with a 20 amp, gel-filled, 110 volt battery charger for quickly recharging the batteries. One battery charge is good for 30+ cycles to still leave the batteries at 75% power.
Jackstands: All LiftPoint Jack Stands come in either 20,000, 30,000 or 40,000 lb capacities and are available with rubber topped flat pads or optional axle engaging yoke pads. They are available in adjustable heights of 47-77”and 30-47”. All offer an additional 7” of fine thread adjustment.
Optional TD-350 Tire Jack Enables Techs to Safely Remove Tires for Wheel & Brake Service
Lift Specifications
| Model: | MP 18 |
| Capacity: | 28,000 lbs. |
| Motor Rating: | 2.5 HP, 208/240V or optional 440/480V 3 phase (single phase option available) or 24 volt DC operations |
| Synchronization: | Automatic SIEMENS® PLC controlled (AC), Automatic Horner Electric PLC controlled (DC) |
| Lifting Height: | 67” |
| Concrete Floor Requirements: |
Any hard, level surface (3o max floor slope) |
| Mechanical Safety Locks: | 19 position starting at 12” |
| Hydraulic Safety Systems: | Automatic; all position |
| Back-Up Hydraulic Safety Systems: |
Pressure compensated flow controls & velocity fuses |
| Drive System: | Direct drive hydraulic cylinders |
| Lifting Speed: | 66 seconds |
| Thrust & Guide Bearings: | Double sealed roller bearings |
| Lifting Forks Range: |
13” to 24” wheels (wider optional) |
| Lifting Fork Height/Angle: |
3 1/2” and 28 degrees |
| Front Wheels: |
6 5/8” with sealed roller bearings at center |
| Steering System: | Pallet jack mech. w/OSHA approved handle & pressure relief valve |
| Floor Access Between Posts: |
Clear and unobstructed |
| Warranty: | 3 years structural |
SAFE LIFTING IN 60 SECONDS!!!
The Only Lift Built to Service Forklifts, Pallet Jacks, Reach Trucks & More
Solid, SAFE & PROVEN
• Speeds Repairs & Boosts Fleet Reliability
• Improves “PM” Compliance
• Reduces Parts Expenses
• Reduces Injuries & Improves Ergonomics
• Reduces Workman’s Comp Exposure
